EFFECTS OF A CAPACITIVE LOAD ON THE AMPLIFIER

In the foregoing discussion we have identified the possible causes of reactance

which could limit the frequency performance of our electronic black box.

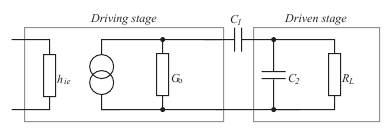

Imagine, now, that one black box is used to drive another, as shown below



The driving stage is represented in the usual way by an input equivalent circuit,

in this case simply a resistance, and an output equivalent circuit consisting of a

current generator and the output conductance Go. This conductance is due to

the combined effects of the transistor's output conductance, hoe, in parallel with

the collector resistor Rc. The driving stage is coupled by C1 to the driven stage.

Only a modified input equivalent circuit is shown for the output circuit. It

consists of a capacitance C2 in parallel with a resistance RL.

C2 and RL represent the total loading of the second stage upon the first. To

predict the frequency behavior of the circuit, all we need do is to express

the current and voltage gains as a function of frequency. It is usually possible to identify three different frequency ranges in which an amplifier can operate. This will enable us to ignore some, or even all, of the capacitive effects within a particular range.
